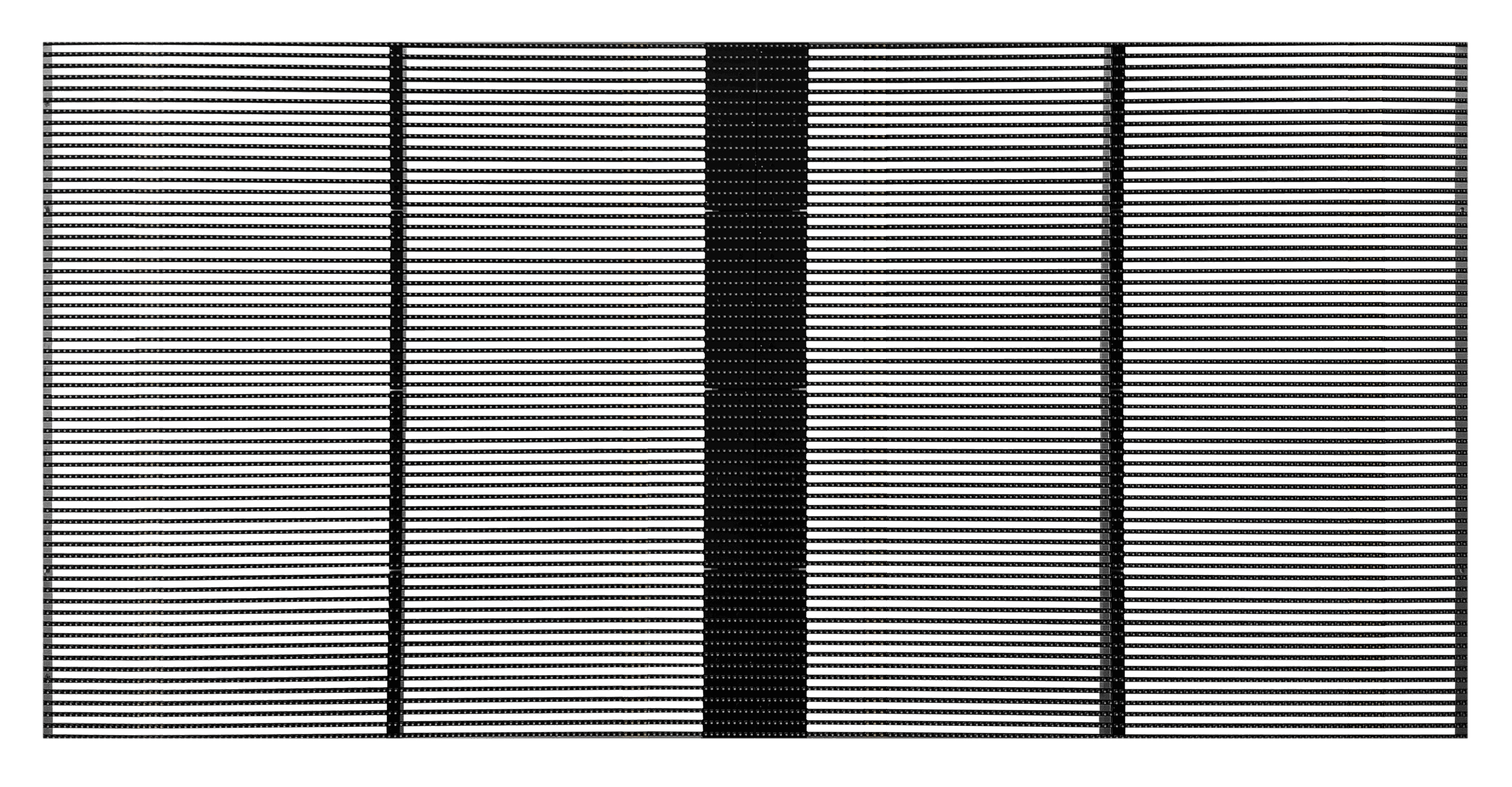

LED Transparent Screen Indoor

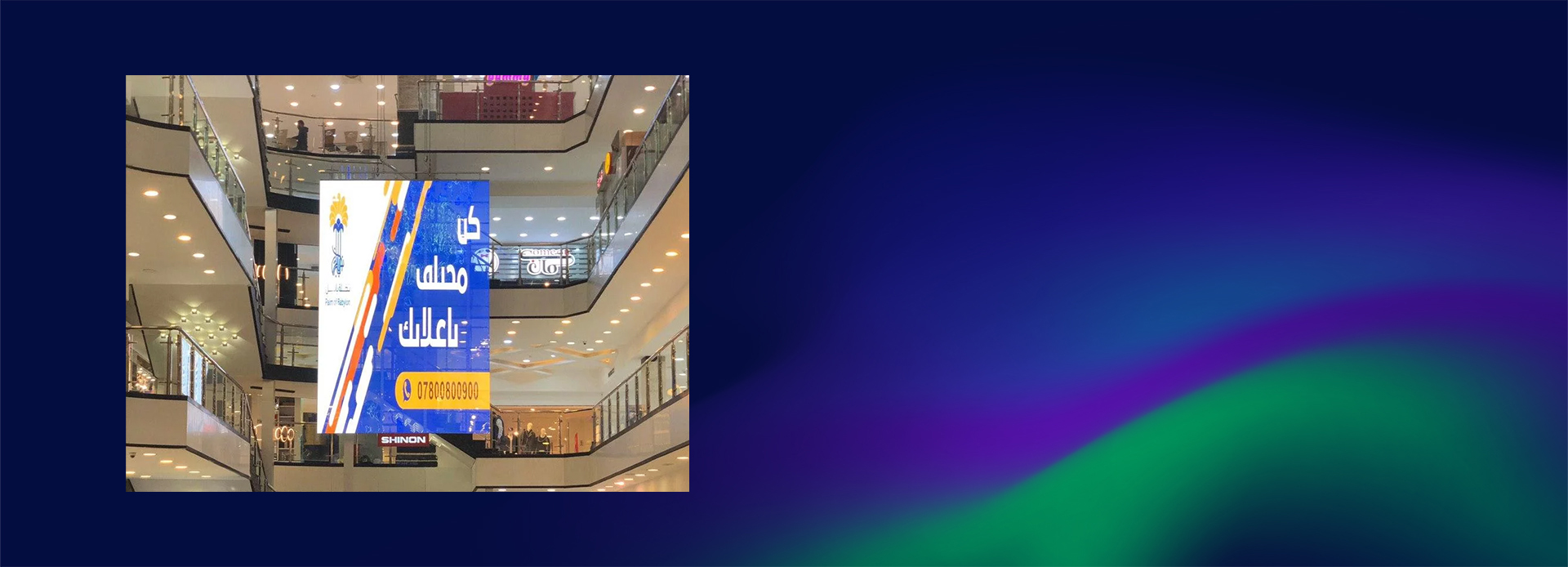

  • Transparent LED signage represents a groundbreaking innovation that blends in perfectly with shopping malls while providing a novel flow of foot traffic.These see-through LED screens are designed with lightweight modules available in various sizes and pixel pitches to meet diverse project requirements.
  • These screens are highly adaptable, featuring moisture-proof and dust-proof capabilities. Their robust structure ensures durability and ease of maintenance, making them an ideal choice for modern displays. Transparent LED signage not only enhances the visual appeal of shopping malls but also provides a unique and captivating display experience.

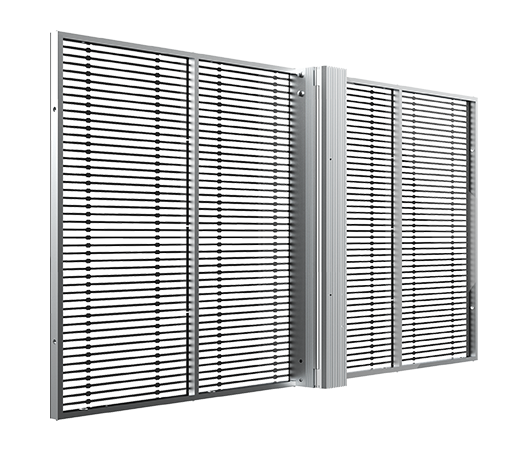

LED TRANSPARENT

Lightweight

Lightweight

4kg/Panel

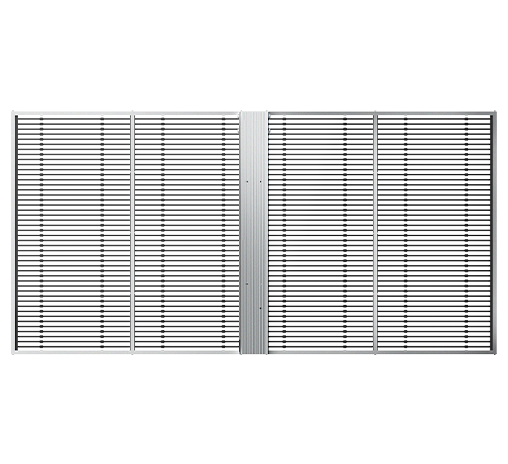

Size Customizable

Size Customizable

Standard cabinet size: 1000x1000mm & 1000x500mm.

Transparent

Transparent

50-80% Transparency

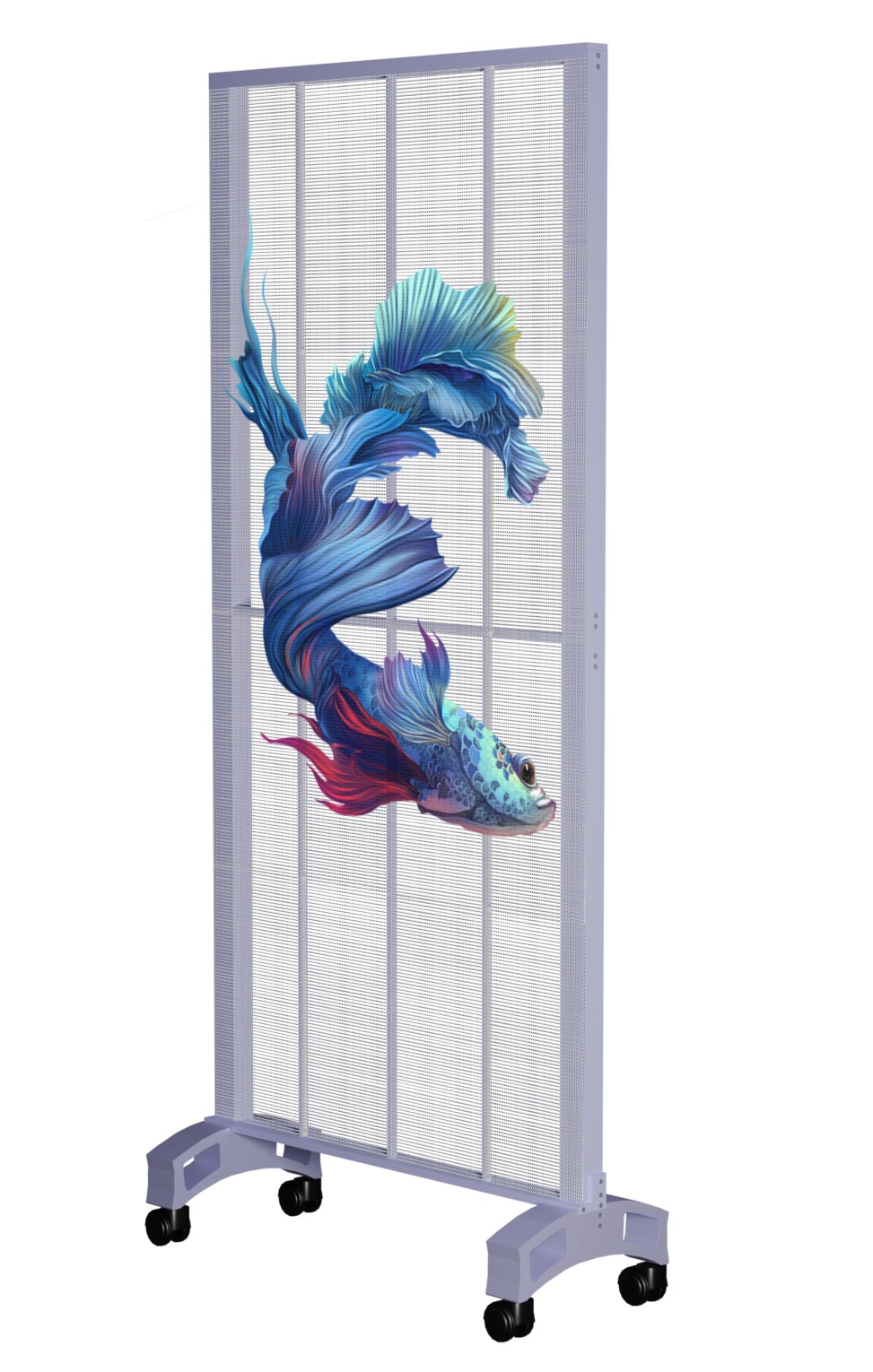

Flexible Installations

Flexible Installations

Hanging/Fixed Installation

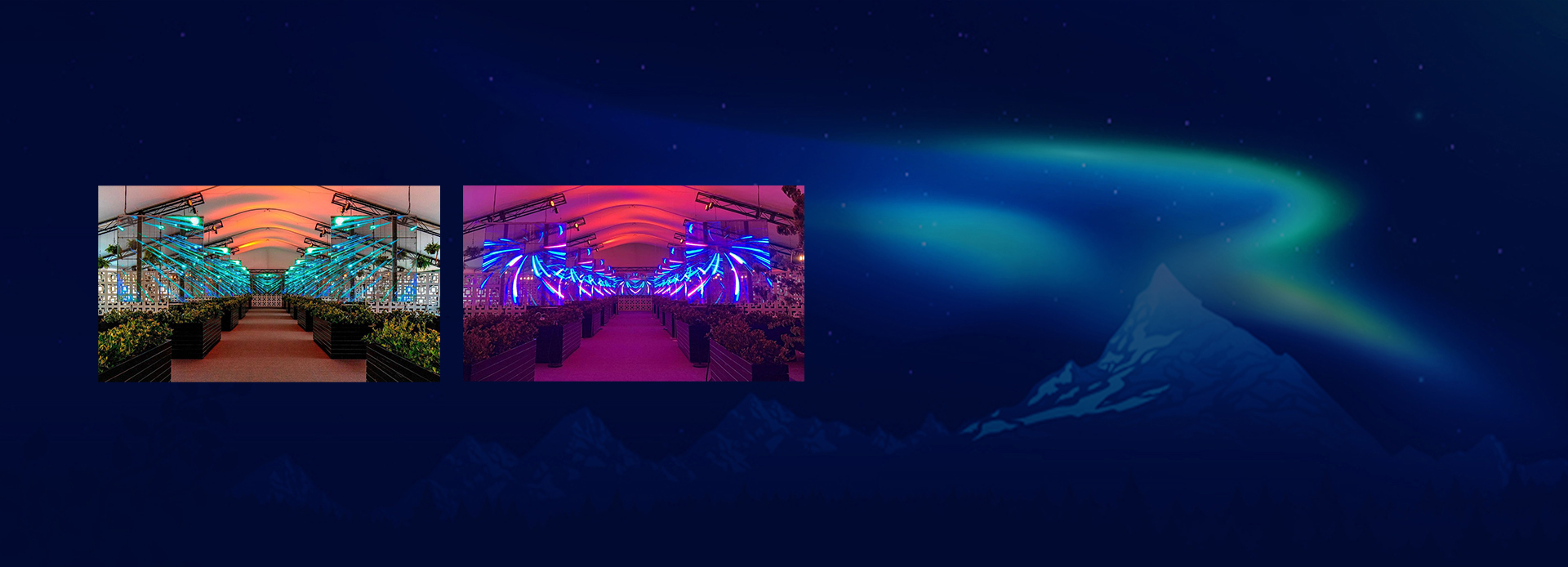

sparkling and translucent

sparkling and translucent

With a permeability of up to 75%.
Does not affect interior lighting or architectural design.

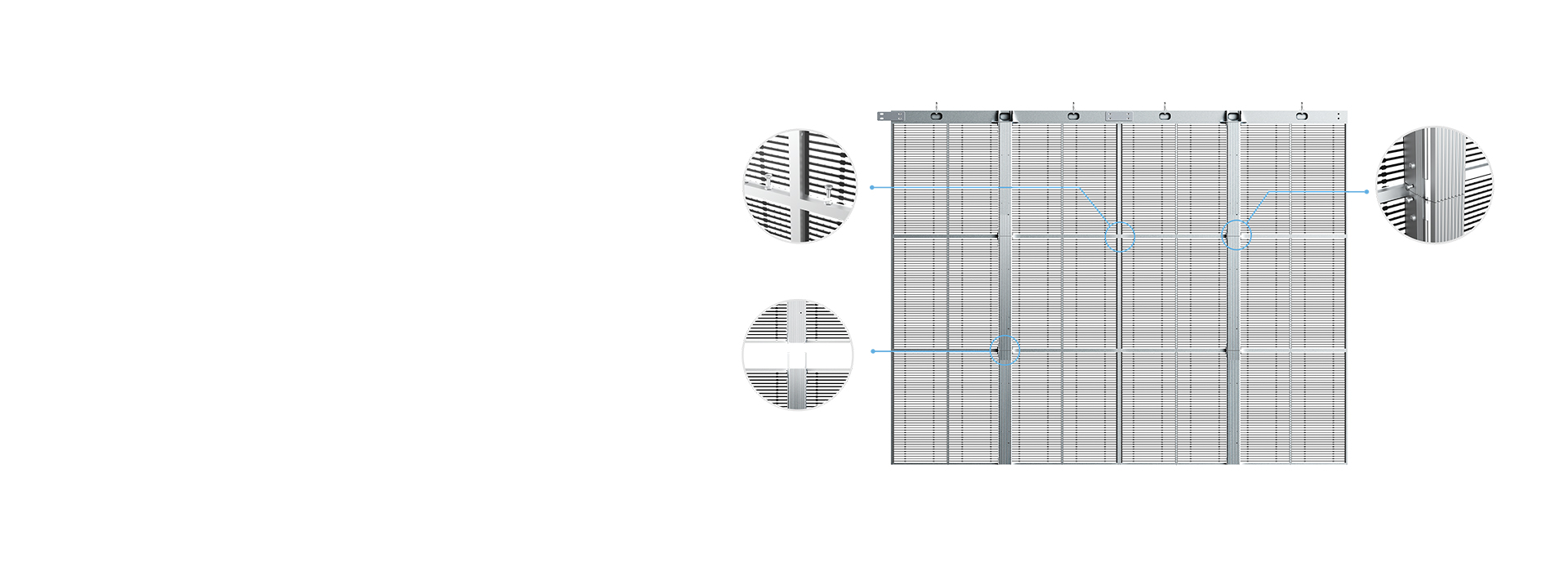

Splice design

Splice design

Indoor transparent screen that can be spliced and expanded in height at will.

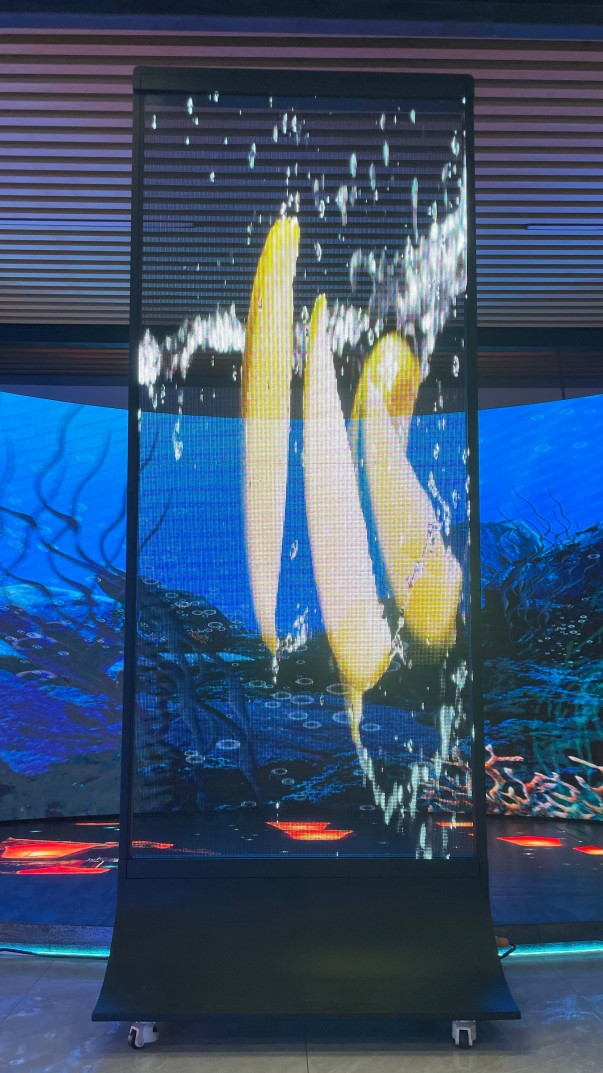

Outstanding transparent screen

Outstanding transparent screen

Rich and excellent color performance.

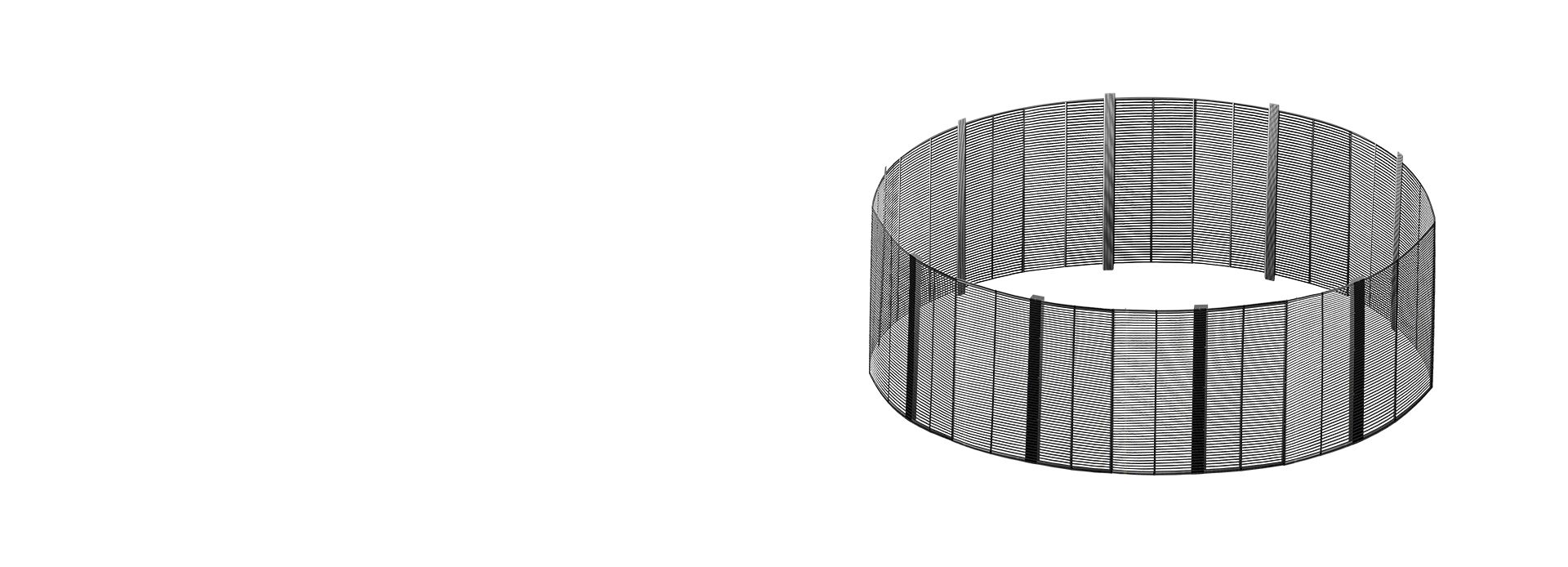

Free Splicing

Free Splicing

Splicing transparent screens as you wish.
Specs
Model ZR-IH-P2.6-5.2 ZR-IH-P3.3-6.25 ZR-IH-P3.9-7.8 ZR-IH-P7.8-7.8 ZR-IH-P10.4-10.4
Pixel Pitch H2.6-V5.2(mm) H3.29-V6.25(mm) H3.9-V7.8(mm) H7.8-V7.8(mm) H10.4-V10.4(mm)
LED Configuration SMD1921 SMD1921 SMD1921 SMD1921 SMD1921
Pixel Density 73728dot/m² 48640dot/m² 32256dot/m² 16284dot/m² 9216dot/m²
Transparency 45% 50% 60% 60% 68%
Scan Mode 12S 8S 7S 4S 2S
Module Size 500X125mm 500X125mm 500X125mm 500X125mm 500X125mm
Module Resolution 192X24dot 152X20dot 126X16dot 64 X16dot 48X12dot
Cabinet Size 1000X500mm 1000X500mm 1000X500mm 1000X500mm 1000X500mm
Cabinet Resolution 384X96dot 304X80dot 252X64dot 128X64dot 96X48dot
Viewing Distance >2m >3m >5m >8m >10m
Brightness 4500-5000 nit/m² 4500-5000 nit/m² 5000 nit/m² 5000 nit/m² 5000 nit/m²
Refresh Rate  ≥3840Hz  ≥3840Hz  ≥1920Hz  ≥1920Hz  ≥1920Hz
Max.Power Consumption                                                                  800W/m²
Ave. Power Consumption                                                                  260W/m²
Gray Scale                                                                  14-16bit
Cabinet Weight                                                                 4kg/Panel
IP Rating ( front/back)                                                                      IP30
Viewing Angle (H/V)                                                                  140°/140°
Environment                                                                   INDOOR
Control Mode                                             Synchronous display with control PC by DVI
Support Input                                   Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation Power                                                         AC110~ 240V, 50/60Hz
Operating Temperature                                                                - 30°C~60°C
Operating Humidity                                                                  10%~90%
Operating Life                                                               ≥100,000hours
