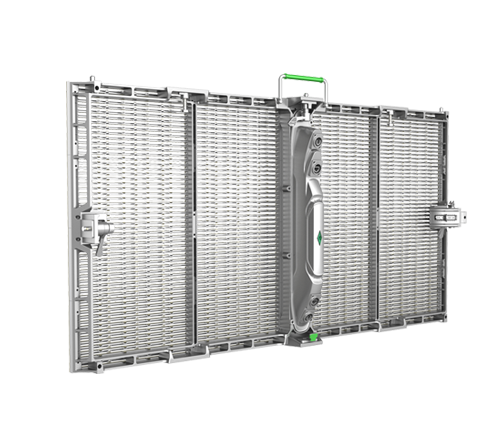

P3.9-8.9 Transparent LED Screen Outdoor

  • The see-through LED transparent screen is an innovation that reduces the impact on architectural aesthetics, improves perspective and provides a new and unique display.
  • The screen consists of lightweight modules of different sizes (different pixel pitches are available according to project needs).
  • It is highly adaptable, moisture-proof, dust-proof, easy to maintain, and has a solid structure that is not easily damaged.

LED TRANSPARENT

Standard cabinet size

Standard cabinet size

1000mm*500mm

High brightness

High brightness

5000CD/sqm

High Transparency

High Transparency

Up to 60% Transparency

IP65 Waterproof

IP65 Waterproof

Suitable for outdoor use

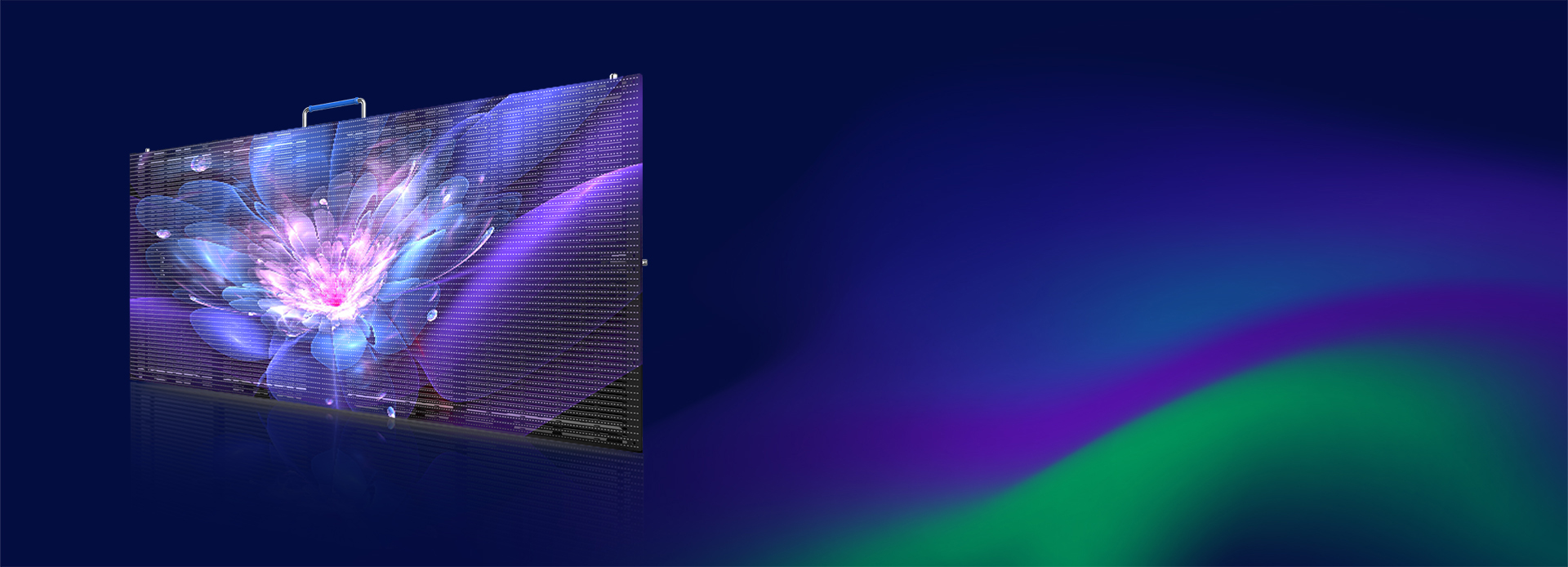

High Transparency

High Transparency

Up to 80% Transparency,
Free of visual obscurity.

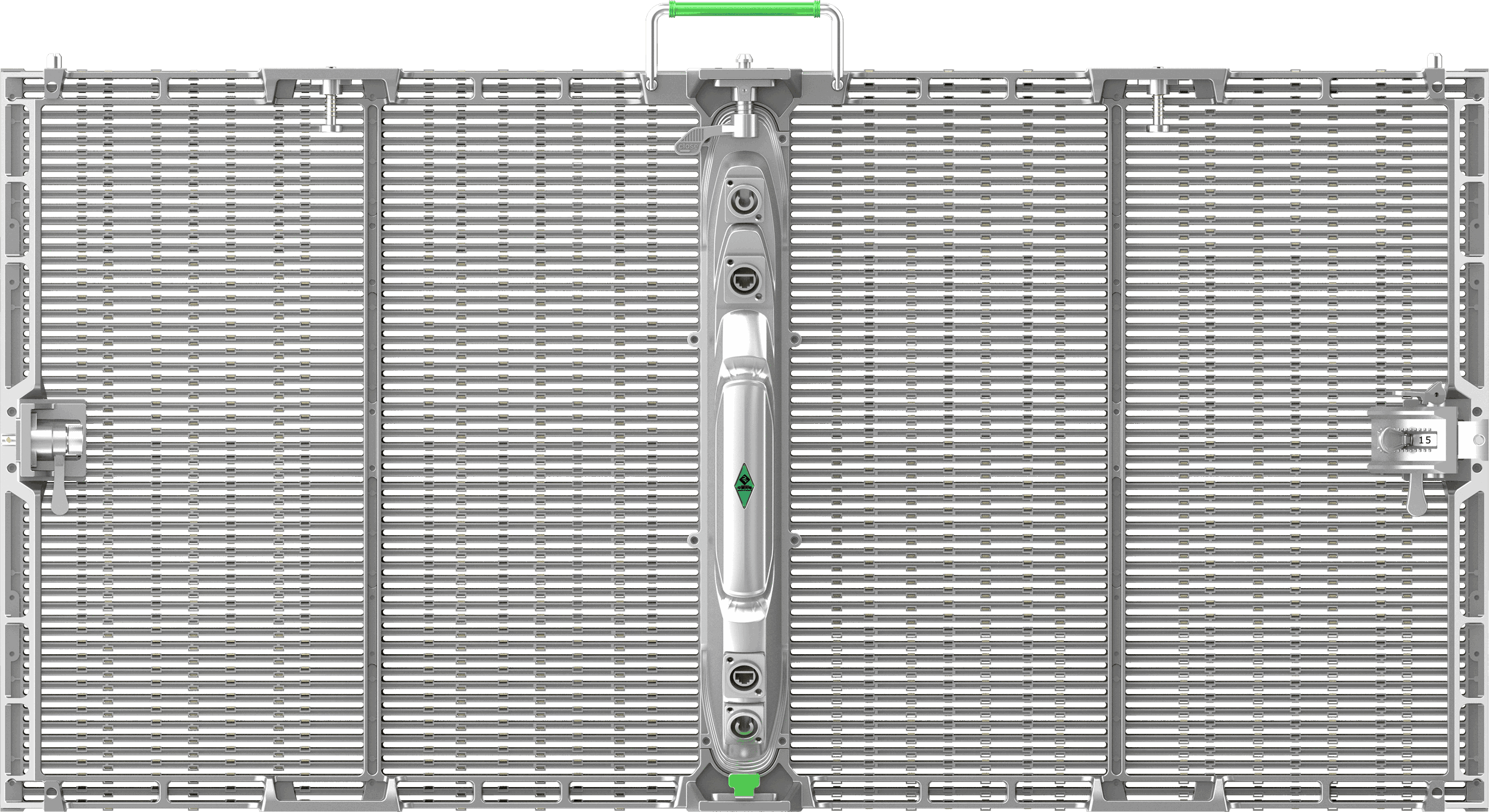

Exquisite design

Exquisite design

Power supply box with high speed rail styling (minimum size),
One-piece profile box structure with oil-sprayed smooth surface treatment.

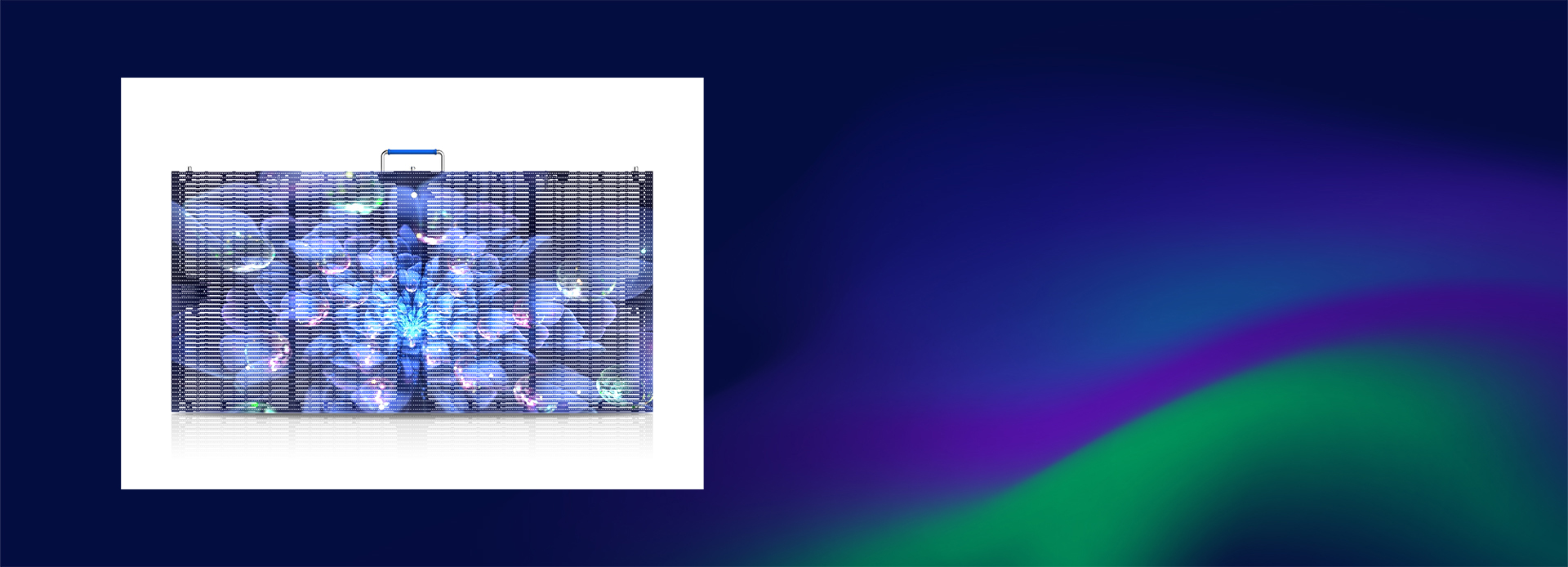

High brightness High refresh

High brightness High refresh

Brightness up to 6500CD.
Can be used during the daytime using high efficiency LED lights under the same brightness conditions with lower energy consumption.

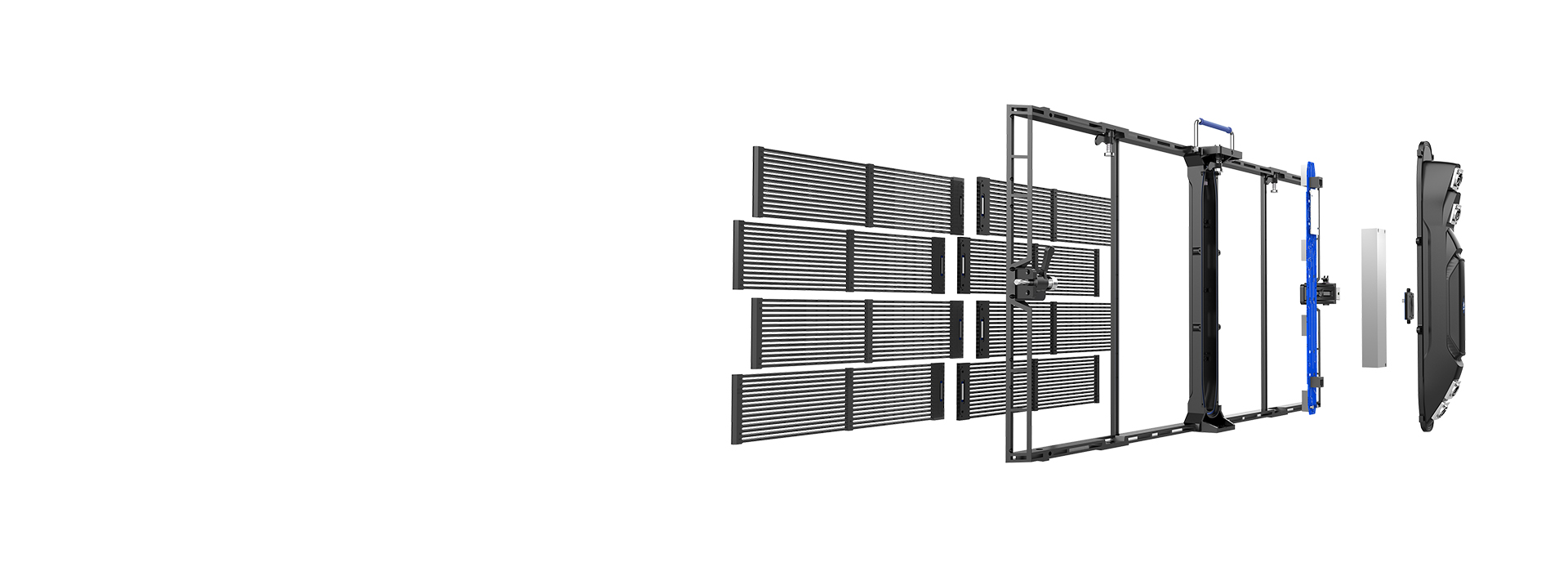

Convenient Installation

Convenient Installation

Can be lifted, base mounted, you can directly fix the module.

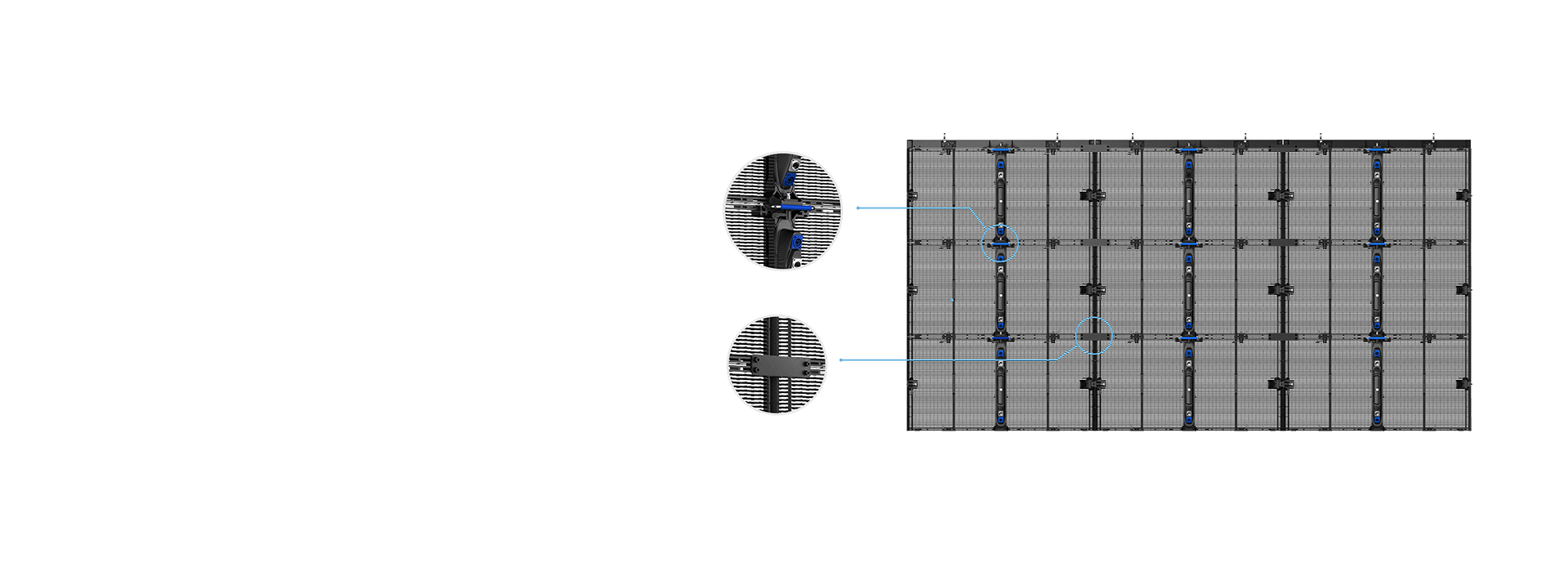

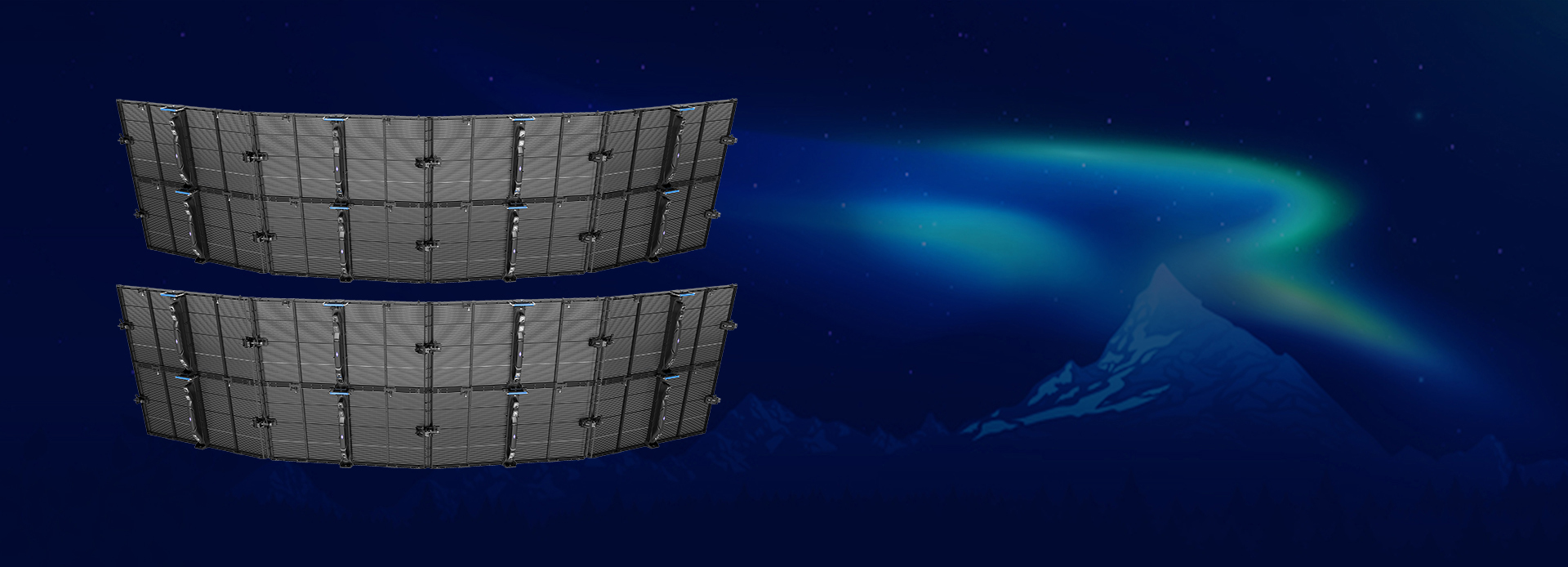

Modular Design

Modular Design

Arc lock design.
Can be spliced into arc, square,
cylindrical and other shapes to meet the needs of a variety of scenes.

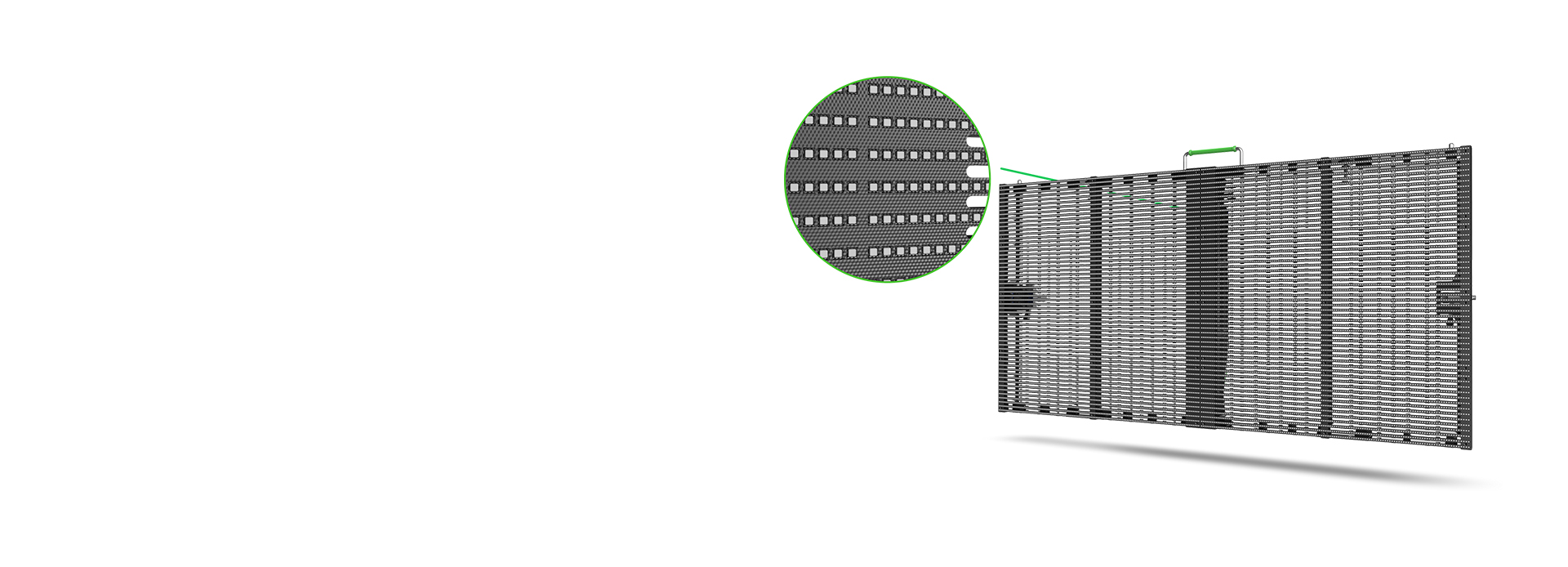

IP65 Waterproof

IP65 Waterproof

Lamp bead filling and power box sealing treatment
Ensure good waterproof performance, can be used normally in rainy days.
Specs
Product Model ZR-ROH-P3.9-7.8 ZR-ROH-P3.9-8.9 ZR-OH-P10.4
Pixel Pitch 3.9mm-7.8mm 3.9mm-8.9mm 10.4mm-10.4mm
LED Configuration SMD1921 SMD1921 SMD1921
Module Size 500mm*125mm 500mm*125mm 500mm”125mm
Module Resolution 128*16dot 126*14dot 48*12dot
Cabinet Size 1000mm*500mm 1000mm*500mm 1000mm*500mm
Cabinet Resolution 256*54dots 252*56dots 9548dots
Transparency 42% 42% 58%
Pixel Density 32768px/㎡ 28224px/㎡ 9216px/㎡
Brightness 5000nits 5000nits 5000nits
Screen Weight 8.5kg/panel 8.5kg/panel 8.5kg/panel
Scan Mode 85 75 25
Cabinet Materials Die-casting Aluminum Die-casting Auminum Die-casting Auminum
Refresh Rate 1920Hz/3840Hz 1920Hz/3840Hz 1920Hz/3840Hz
Ave.Power Consumption ≤260w/㎡ ≤260w/㎡ ≤260w/㎡
Max.Power Consumption ≤800w/㎡ ≤800w/㎡ ≤800w/㎡
IP Rating IP65 I65 IP65
